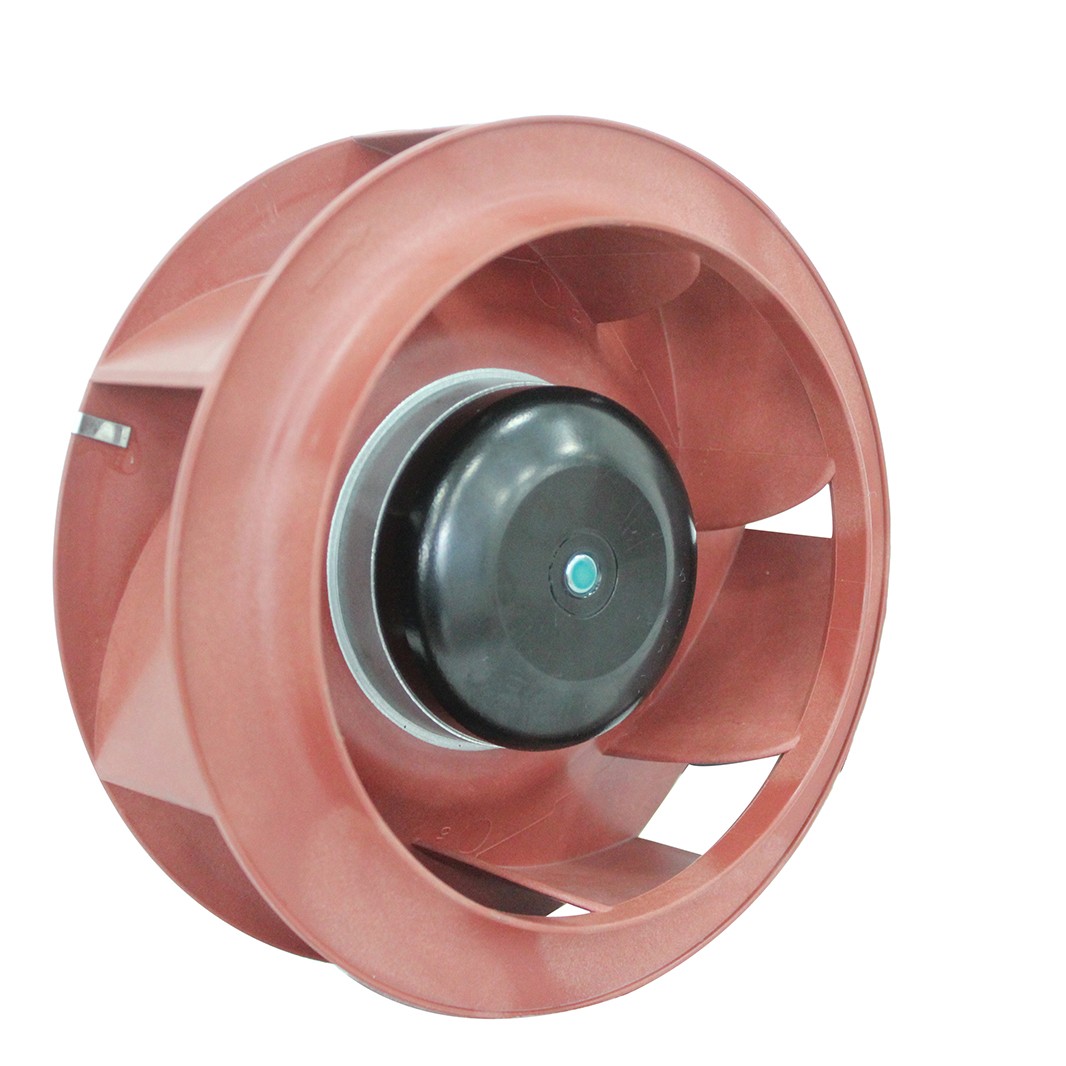

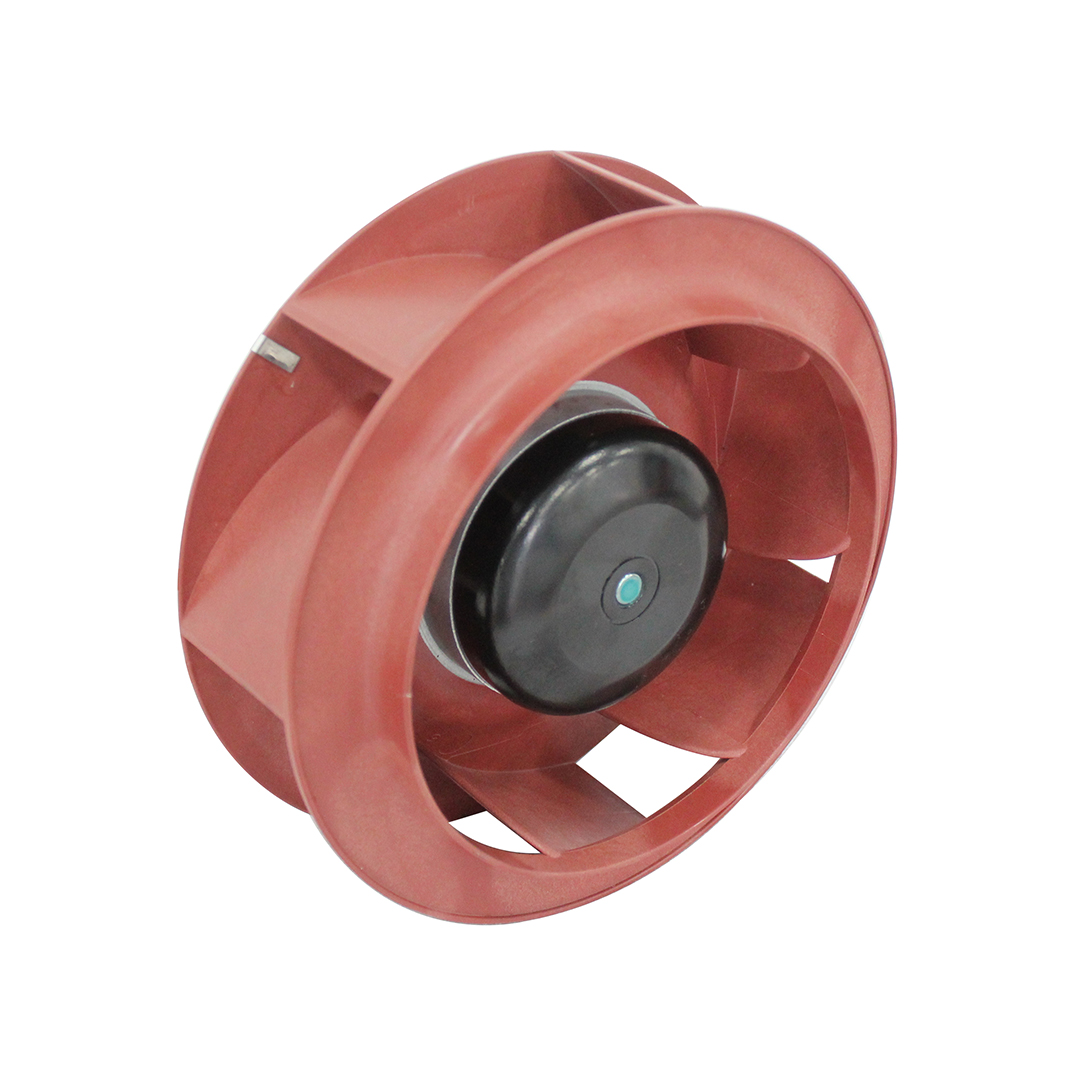

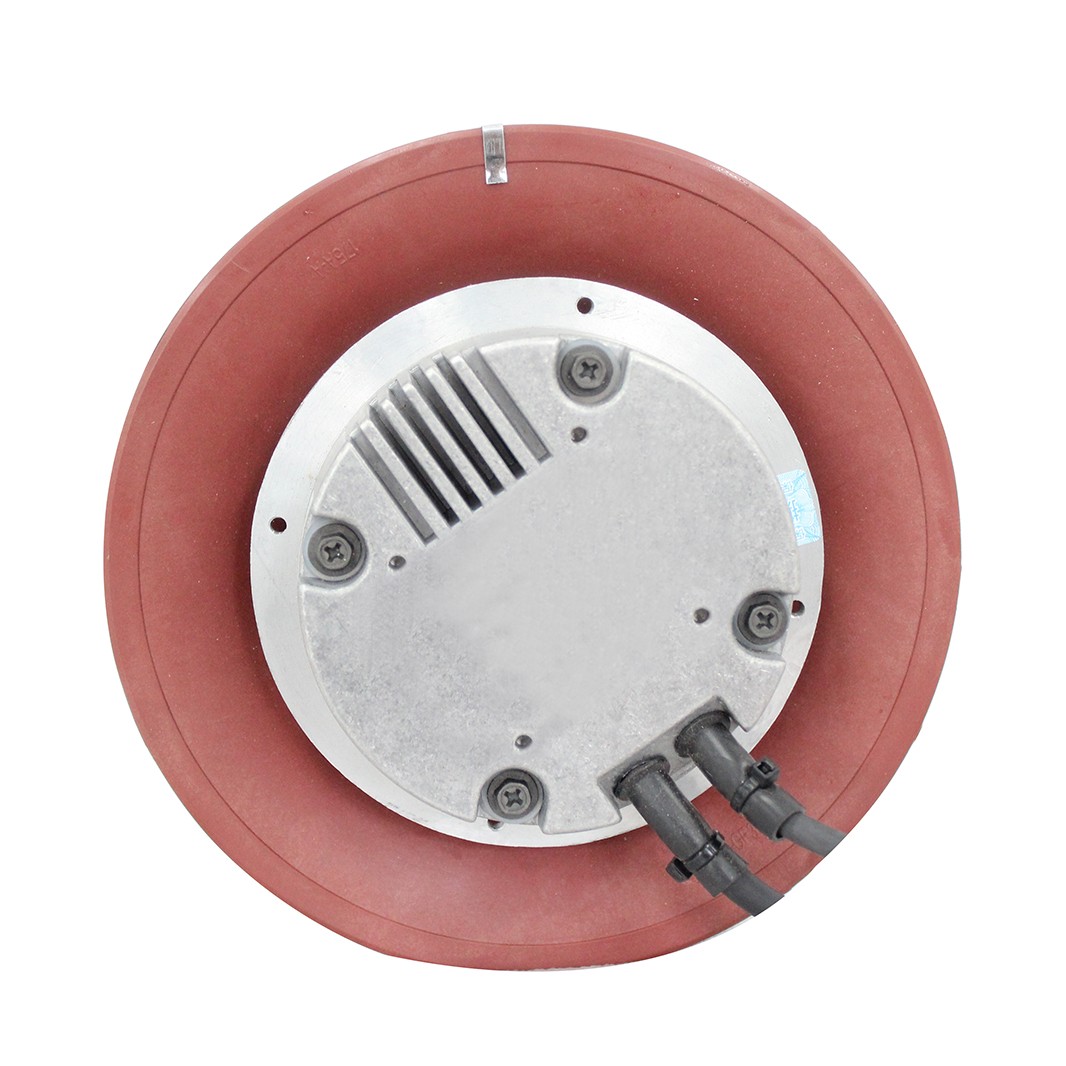

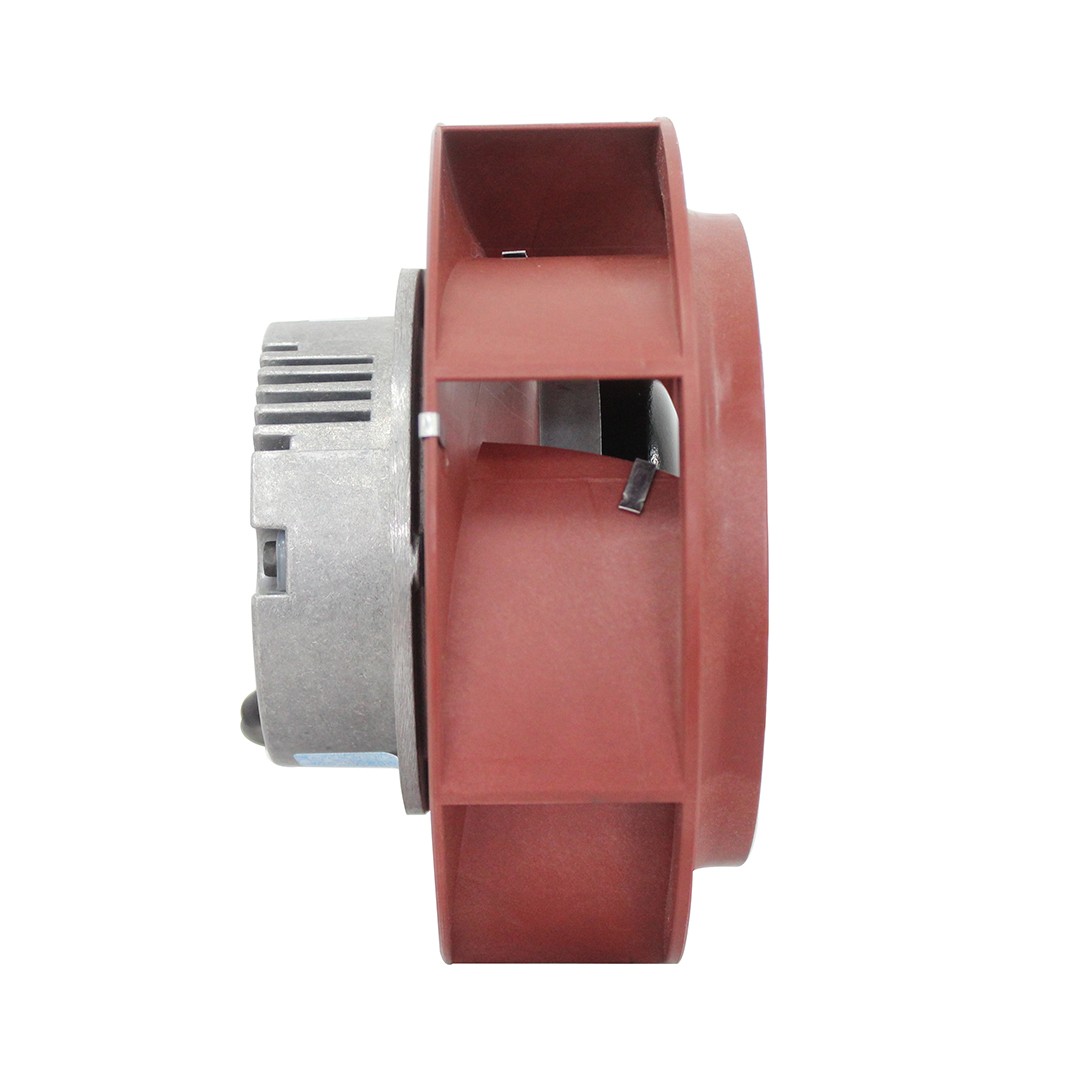

Description

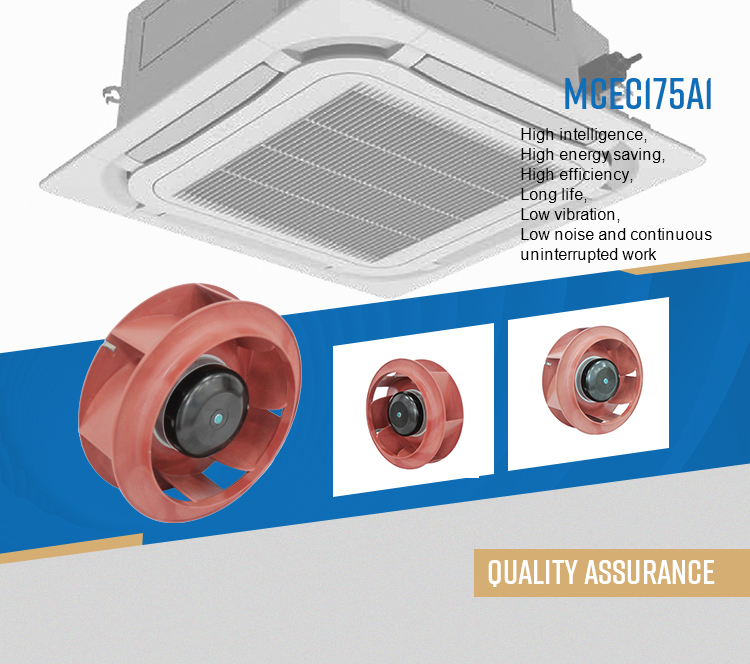

Feature:
High intelligence
High energy saving
High efficiency
Long life
Low vibration
Low noise and continuous uninterrupted work
The appearance, size, and performance can be customized.

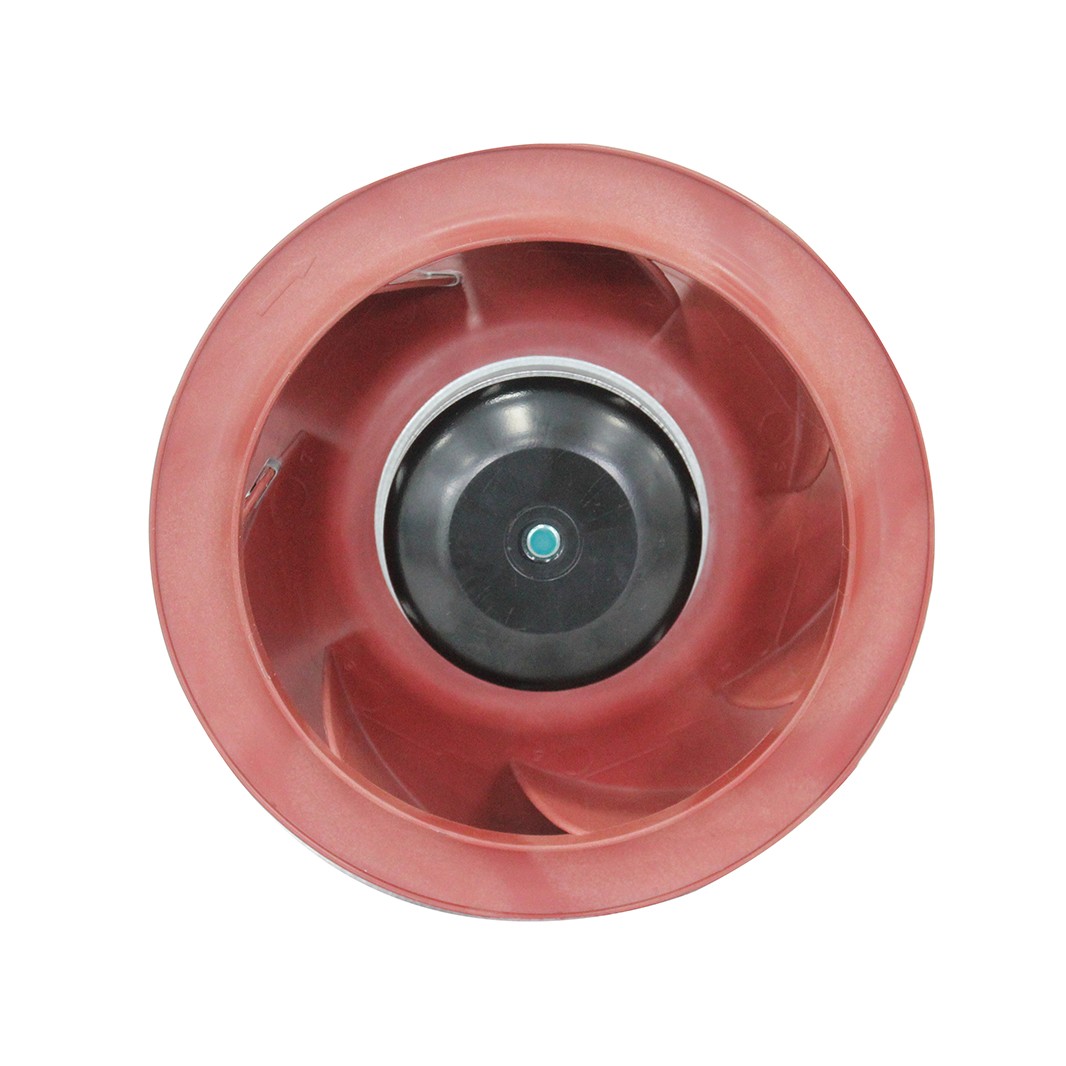

| Model | Voltage (V) | Maximum power (KW) | Frequency (Hz) | Speed(rpm) | Maximum air volume( m³/h) | Maximum static pressure (Pa) | Insulation class | Protection level | Noise (dB) |
| EC133A1 | 230V | 0.088 | 50/60 | 5220 | 450 | 500 | F | IP54 | 68 |
| EC175A1 | 230V | 0.166 | 50/60 | 5030 | 880 | 800 | F | IP54 | 69 |
| EC190A1 | 230V | 0.150 | 50/60 | 4230 | 810 | 750 | F | IP54 | 70 |
| EC225A1 | 230V | 0.215 | 50/60 | 3060 | 1455 | 650 | F | IP54 | 71 |
| EC250A1 | 230V | 0.295 | 50/60 | 3170 | 1505 | 800 | F | IP54 | 73 |
| EC310A1 | 380V | 1.51 | 50/60 | 2710 | 5935 | 1250 | F | IP54 | 77 |
| EC320A1 | 230V | 0.355 | 50/60 | 2150 | 2730 | 600 | F | IP54 | 72 |
| EC320B1 | 230V | 0.655 | 50/60 | 2600 | 3250 | 900 | F | IP54 | 76 |
| EC355A1 | 230V | 0.645 | 50/60 | 2055 | 3915 | 750 | F | IP54 | 74 |
| EC400A1 | 380V | 1.480 | 50/60 | 2060 | 6700 | 900 | F | IP54 | 77 |
| EC400B1 | 380V | 2.700 | 50/60 | 2405 | 7485 | 1400 | F | IP54 | 81 |
| EC400C1 | 380V | 3.585 | 50/60 | 2745 | 8305 | 1800 | F | IP54 | 85 |
| EC400D1 | 230V | 0.650 | 50/60 | 1520 | 5215 | 590 | F | IP54 | 75 |
| EC450B1 | 380V | 3.950 | 50/60 | 2260 | 13960 | 1700 | F | IP54 | 82 |
| EC450C1 | 380V | 5.350 | 50/60 | 2250 | 15202 | 2000 | F | IP54 | 86 |
| EC520A1 | 380V | 4.260 | 50/60 | 2200 | 12830 | 1500 | F | IP54 | 88 |
| EC560A1 | 380V | 3.660 | 50/60 | 1620 | 15275 | 1100 | F | IP54 | 86 |
| EC560C1 | 380V | 5.570 | 50/60 | 1770 | 20710 | 1600 | F | IP54 | 86 |
| EC630A1 | 380V | 3.850 | 50/60 | 1380 | 20100 | 1000 | F | IP54 | 87 |
Can be customized please contact us with your customized specifications for us to recommend you best resolution with
accurate price high efficiently.

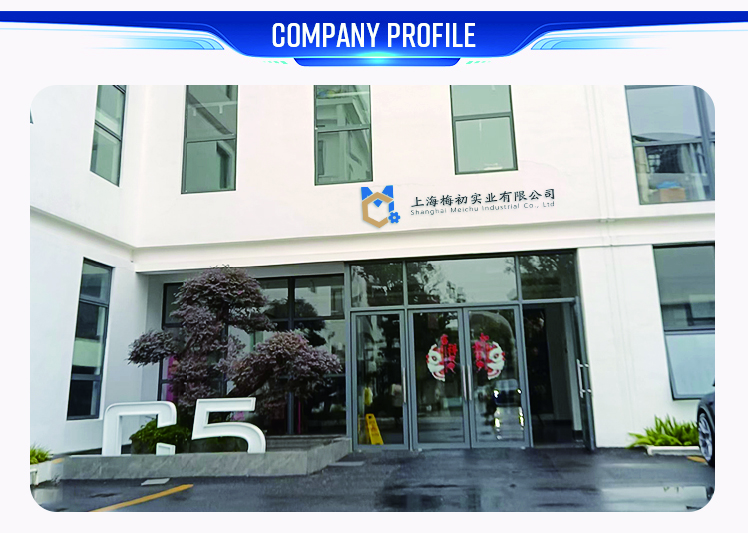

About us:
Shanghai Meichu Industrial Co., Ltd. is a professional supplier of various micro motors as well as motor related products
more than 10 years.Our products includes various DC motors, gear motors, AC motors, fan motors and electric actuators
etc...
We also offer solution of transmission design, structrual design and product development plan. We are good at making
both standard and non-standard micro motors. Our motors are widely used in cars, home appliance, medical device,
dental equipment, robotics, smart products,electricl equipment, sports apparatus,conveying machinery etc..
Our products meet the standards of CE, ISO 9001, UL, REACH, RoHS,ETL and SGS.
We pay close attention to technology, quality,standardization and process management.
We always operate in brand thinking way and take addressing customer pain points as our responsibility.
"First Responsibility Then Business. "is our unchanged commitment.
Q: Do you have catalog?
A: Yes. Please tell us your preferred motor type so that we can send you proper one.
Q: Which data can be customized?
A: Voltage, speed, torque, power,dimension and shaft etc.. Kindly send us sample or share your detailed requirements
for us to evaluate and recommend you best resolution.
Q: What if my customized motor needs development of mold?
A: First, we will try to find ready mold matching your specifications. Or we can develop mold for mass production. During
sampling period we try to make sample by CNC and with ready similar parts to save your cost of testing samples as
what as we can.
Q: Do you supply motor accessories such as patch cord, encoder and PCB etc.?
A: We can help you source in case you need.
Q: Can you also supply with terminal product related with the motors?
A: We've been help designing and making terminal products to save cost and time..
Q: Can you quote with shipping fee?
A: Yes.We have well-cooperated forwarder and is happy to get you favorite shipping fee.
Q: What's normal lead time of samples and mass production?
A: It takes around 15-20 days to make regular sample and 25-30 days for customized one. It will take about 45 days to
complete a 5000pcs order after samples are confirmed. Mold development time is approx 2-3 months.
Q: What is MOQ?
A: Any quantity is welcome as trial order. But price will be different based on materials cost difference due to MOQ
difference.
Q: How can you guarantee quality?
A: Always make sample as per confirmed drawing and data. Always start mass production according to confirmed
samples. Always 100% final inspection before shipment. Always get satisfaction from our clients.
Q: Is your price accurate online? How can I place sample order?
A: Price here is rough idea of our standard model only. Please contact us for confirmation of specification before
get accurate and favorite price.Then we can go on with online sample order or directly deal with our company off line.
Q: What's your after-sale service?
A: Normally one year guarantee after goods reach your hand. Due to different work duty the life time will vary.
However, we will always be cooperative to help resolve the problem.
Q: What certificates do you have?
A: All materials passed RohS. Since motors are normally customized and the certification cost and period is different.
We can apply for certificates(such as CE, UL,ETL etc.) as per client's request. Certification period normally takes 2-3
months.
Q: Are you manufacture or trading company?
A: We're a team of partnership with professional and experienced technical, procurement,international communicator
and after-sales team etc.. Our company Meichu is responsible for importing&exporting business, but we have tightly
cooperated and contracted factories, we joined each other's company one another to be sure of good quality, high
efficiency and timely delivery. The 1+1>2 high efficient work mode always bring our client's satisfaction on price, quality
and service.
Q: Why should I choose you?
A: We're a professional, cooperative and responsible team.
First responsibility then business is our work attitude.
Same price compare quality.
Same quality compare service.
Same service compare responsibility.
