Description
| MAIN FEACTURES |

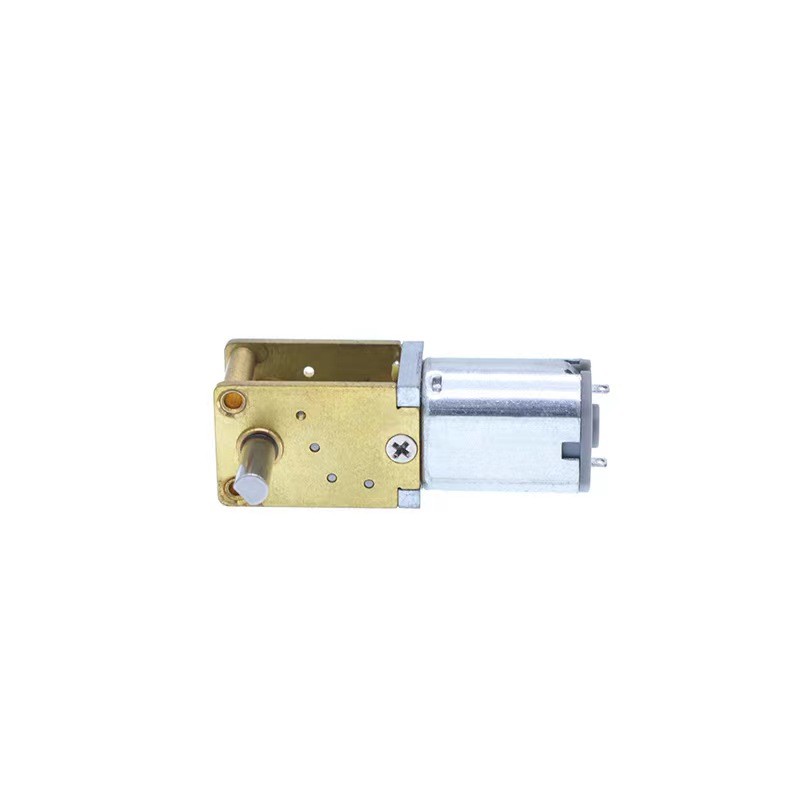

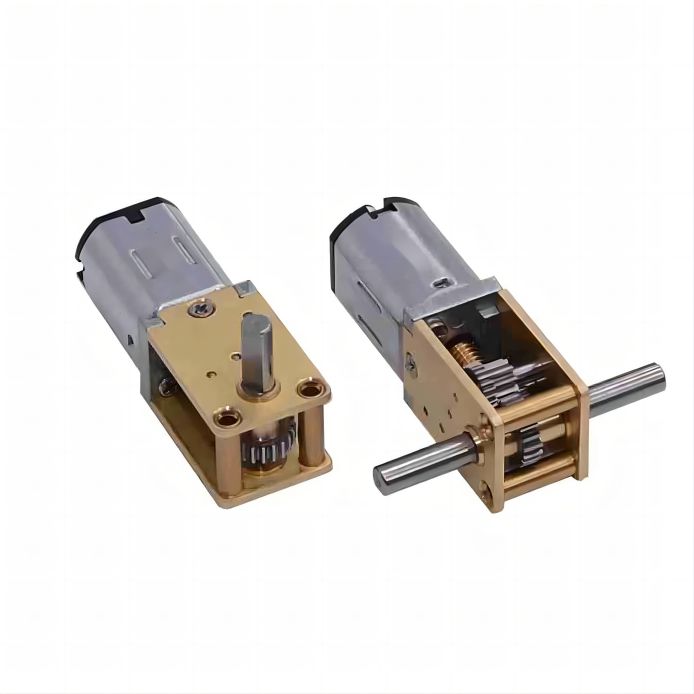

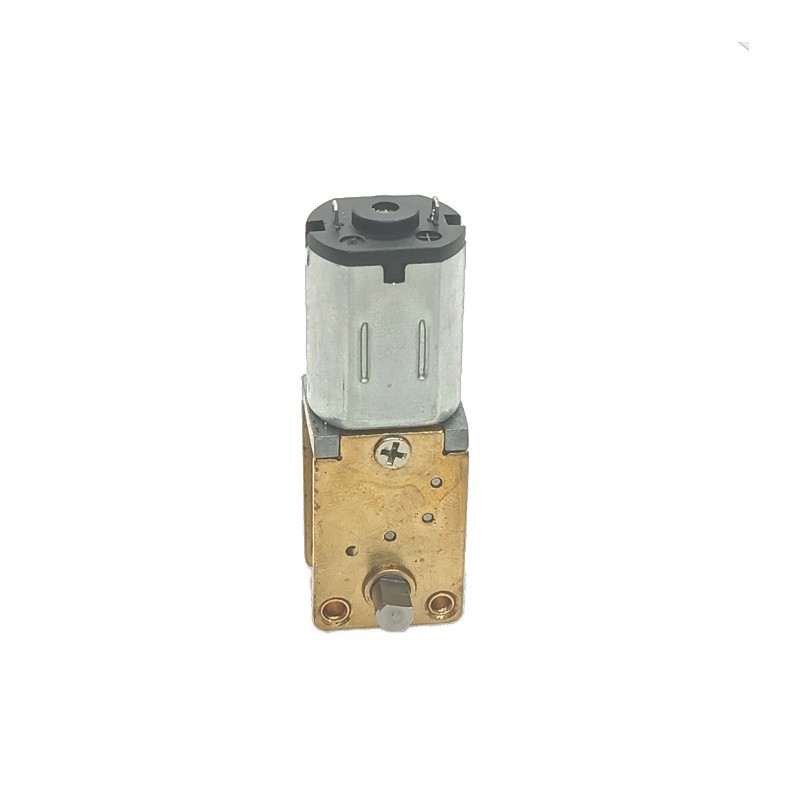

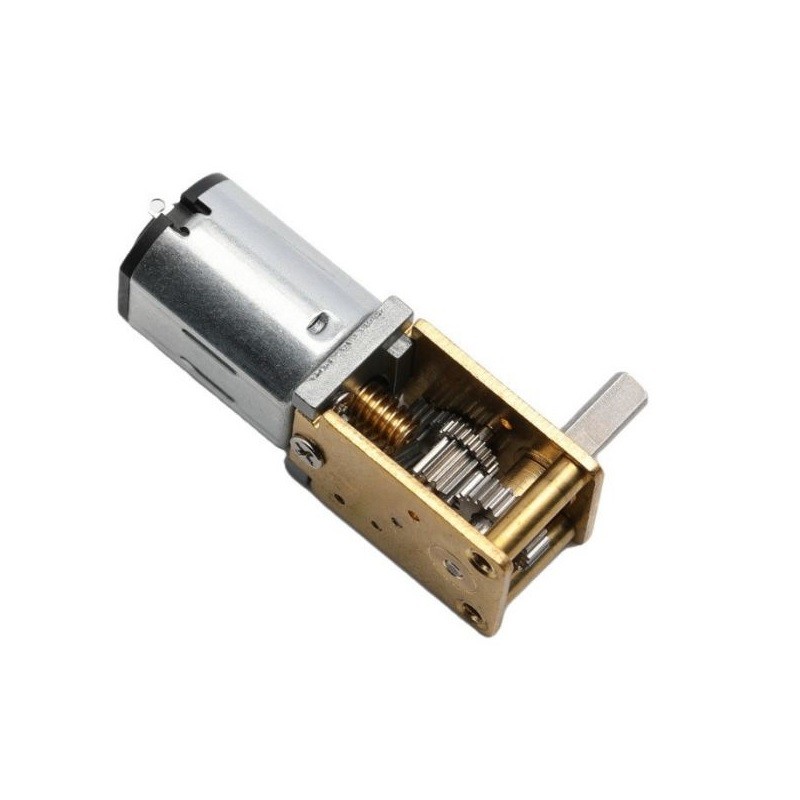

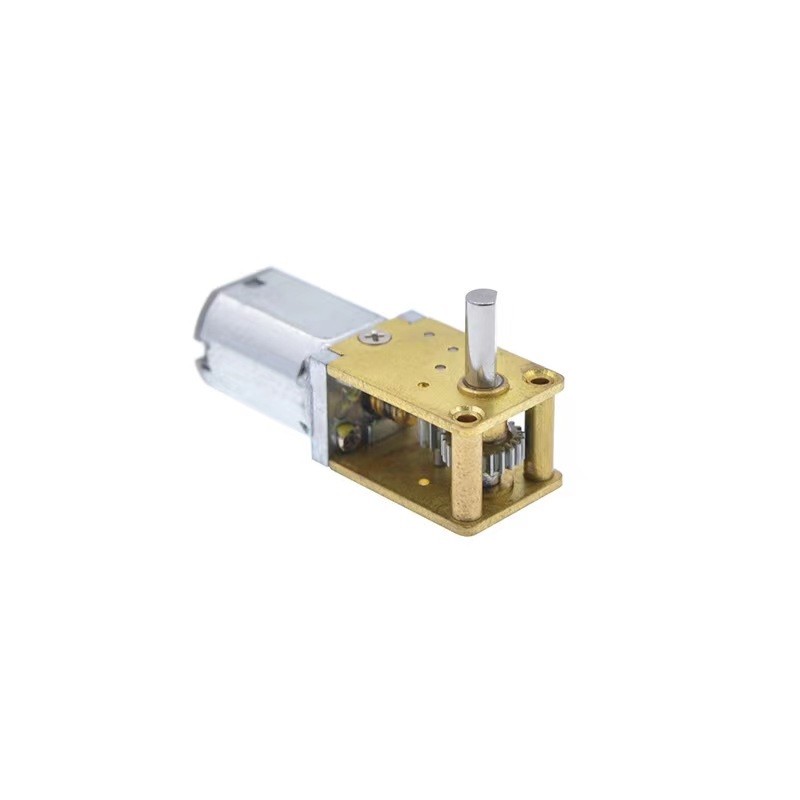

3v N20 micro gear motor worm gear, Dual shaft, low rpm and high torque, longer lifetime and lower noise
Size, voltage, speed, torque and shaft etc. can be customized
Widely used in industry, medical, farming, home appliance and smart products etc.

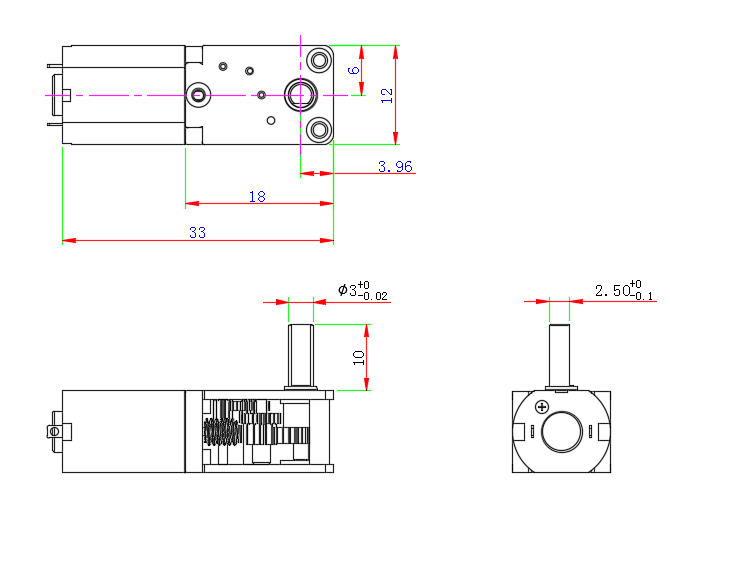

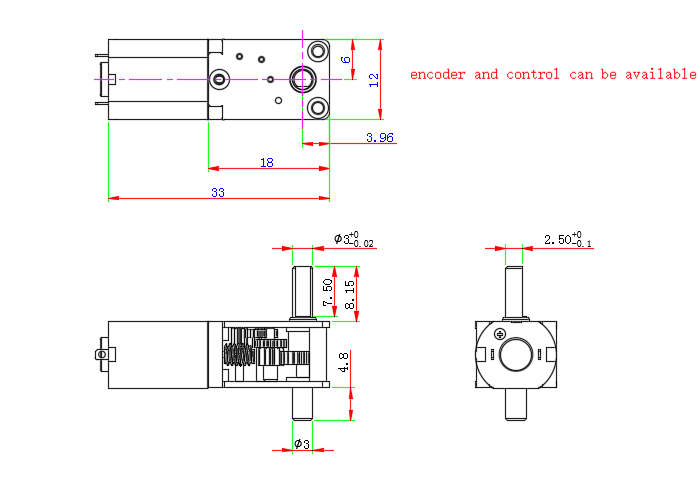

| DIMENSION |
| TECHNICAL DATA |
| MODEL | VOLTAGE | NO-LOAD SPEED | NO-LOAD CURRENT | POWER | STALL TORQUE | STALL CURRENT |
|
MC1812F-N20VA |
3.0V | 50RPM±10% | 0.05A | 0.18W | 900gf.cm | 0.5A |
| ... | ... | ... | ... | ... | ... | ... |
