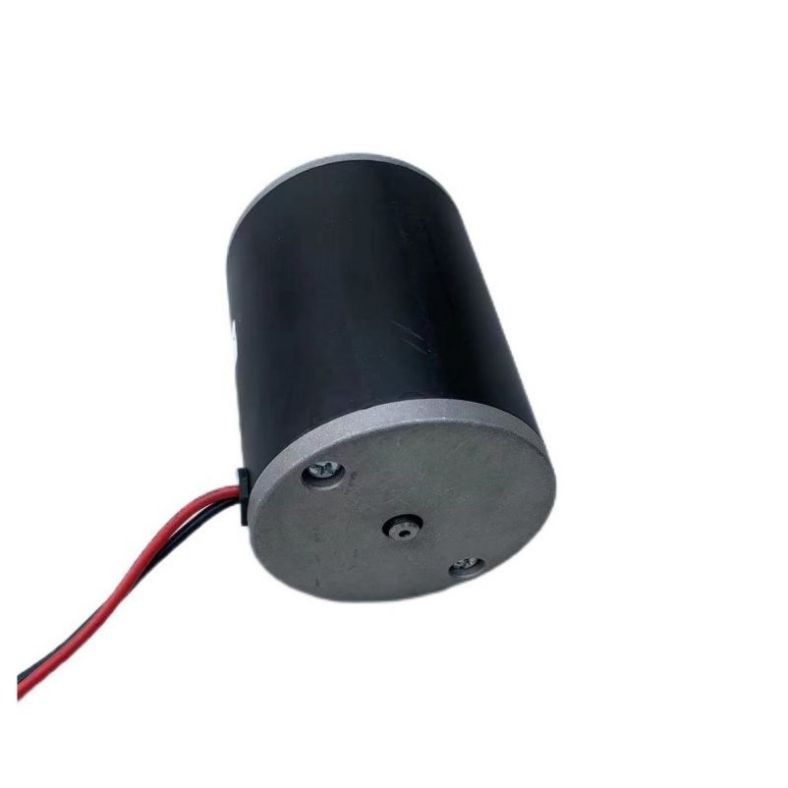

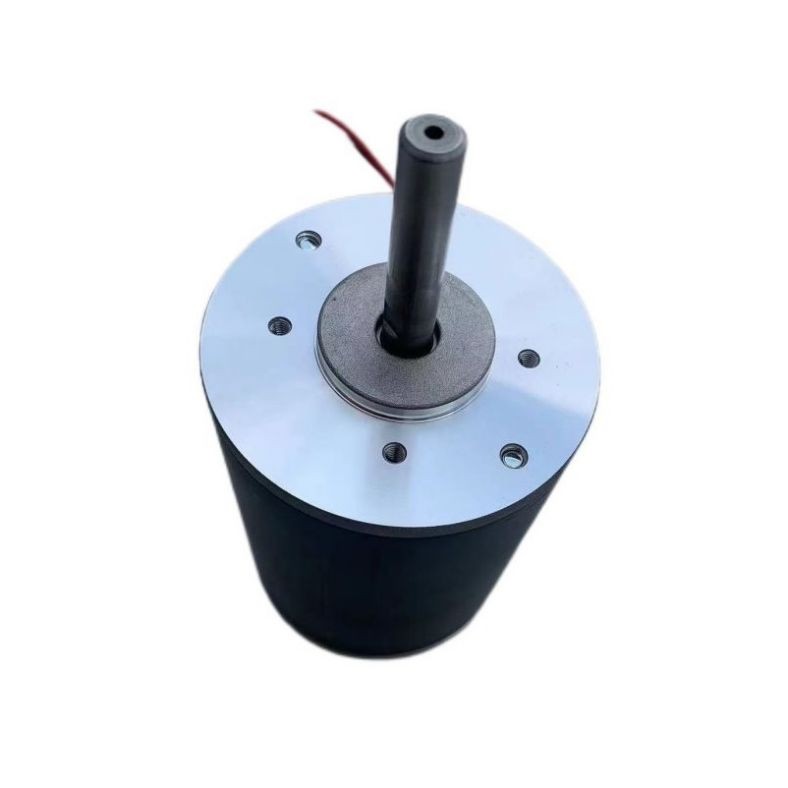

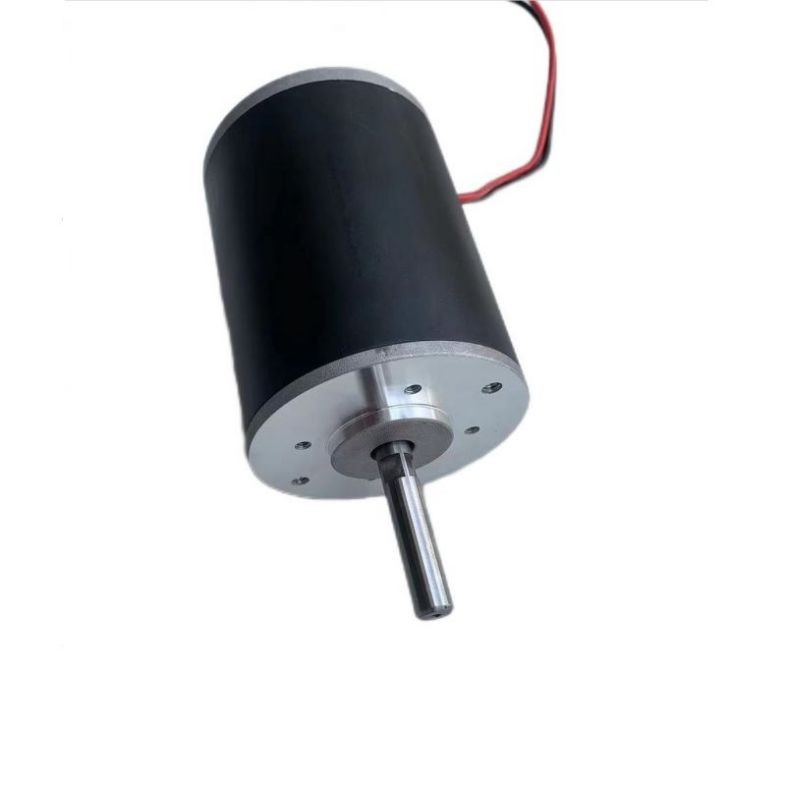

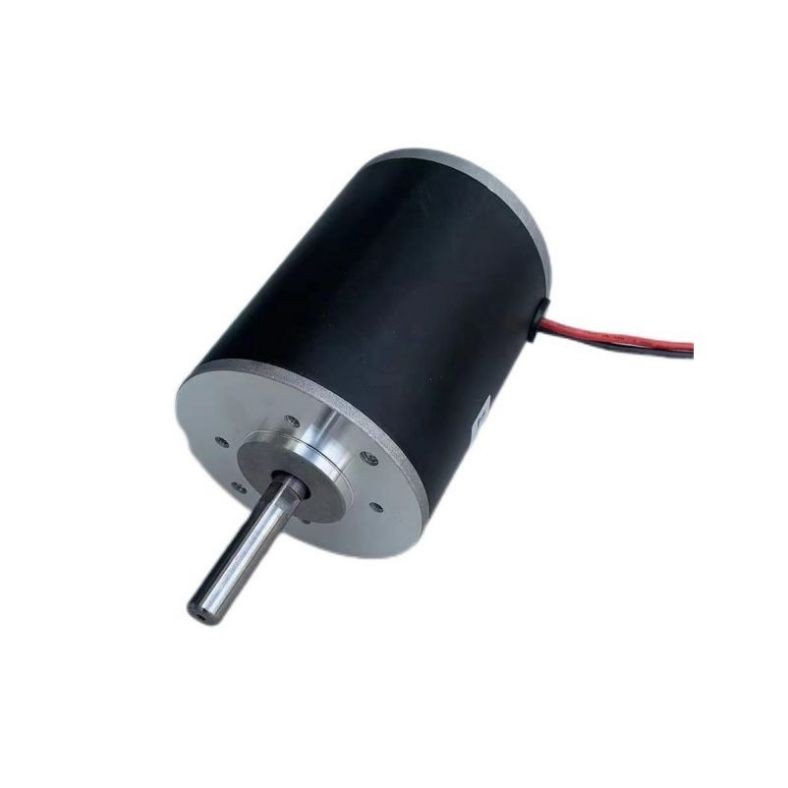

  • 80mm 24v Permanent Magnet ZYT DC Motor For Industry
  • 80mm 24v Permanent Magnet ZYT DC Motor For Industry
  • 80mm 24v Permanent Magnet ZYT DC Motor For Industry
  • 80mm 24v Permanent Magnet ZYT DC Motor For Industry
80mm 24v Permanent Magnet ZYT DC Motor For Industry 80mm 24v Permanent Magnet ZYT DC Motor For Industry 80mm 24v Permanent Magnet ZYT DC Motor For Industry 80mm 24v Permanent Magnet ZYT DC Motor For Industry

80mm 24v Permanent Magnet ZYT DC Motor For Industry

  • Product Item:MC80ZYT106-1171D
  • Rated Voltage: 24V
  • No-load Speed: 6016RPM
  • Rated Power: 182.9W
  • Rated torque: 15.943kgf.cm
  • PMDC Motors  , PMDC motor with encoder  , pmdc motor for blender high speed
    Inquiry Send Email

    Description

    MAIN FEACTURES

    5500RPM 250W 24V DC PMDC motors for garage door

    Both square and round flange can be customized

    High power, high speed, long lifetime

    Size, voltage, speed, torque and shaft etc. can be customized

    Widely used in industry, medical, farming, home appliance and smart products etc.

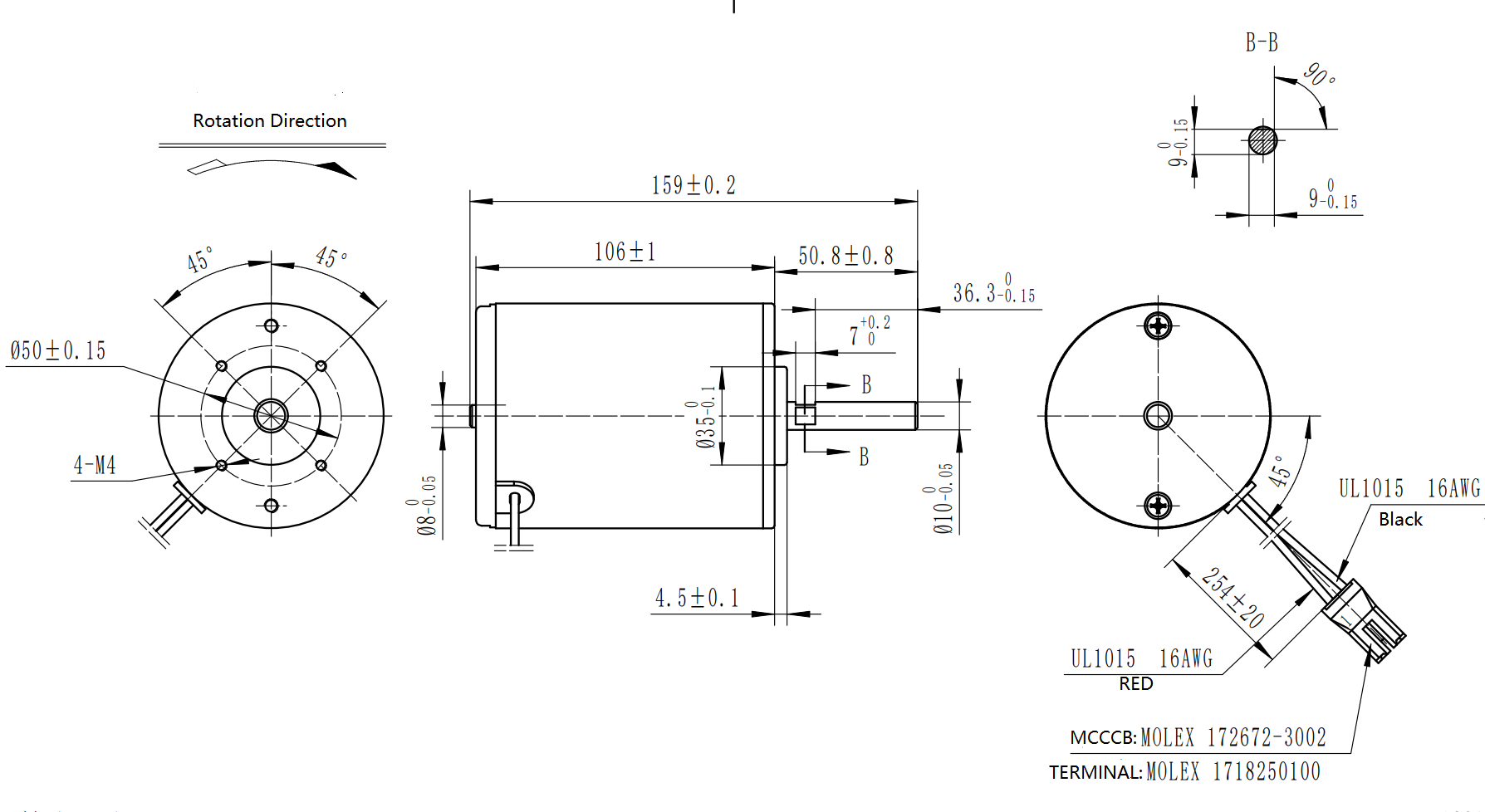

    DIMENSION

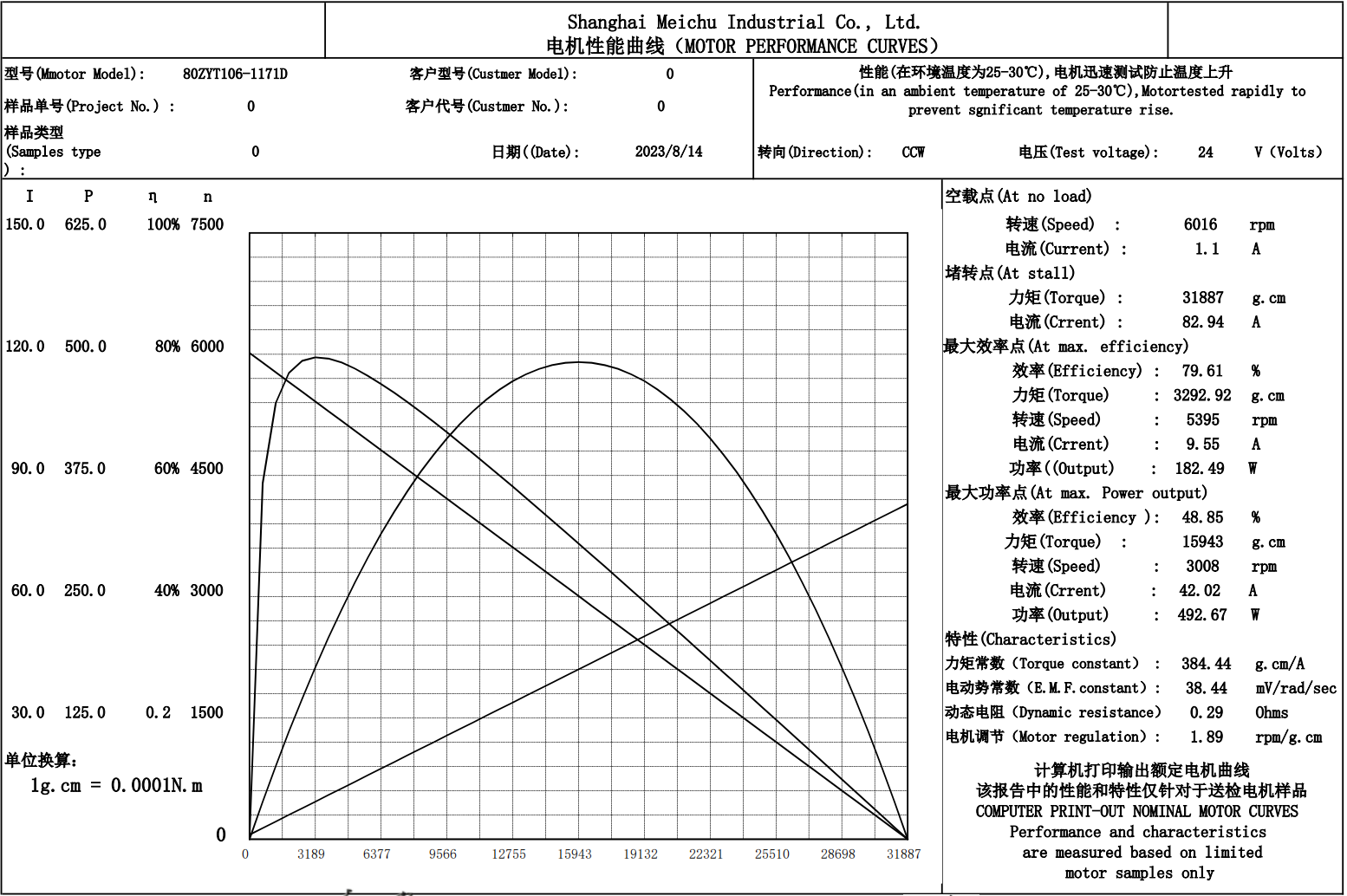

    TECHNICAL DATA
