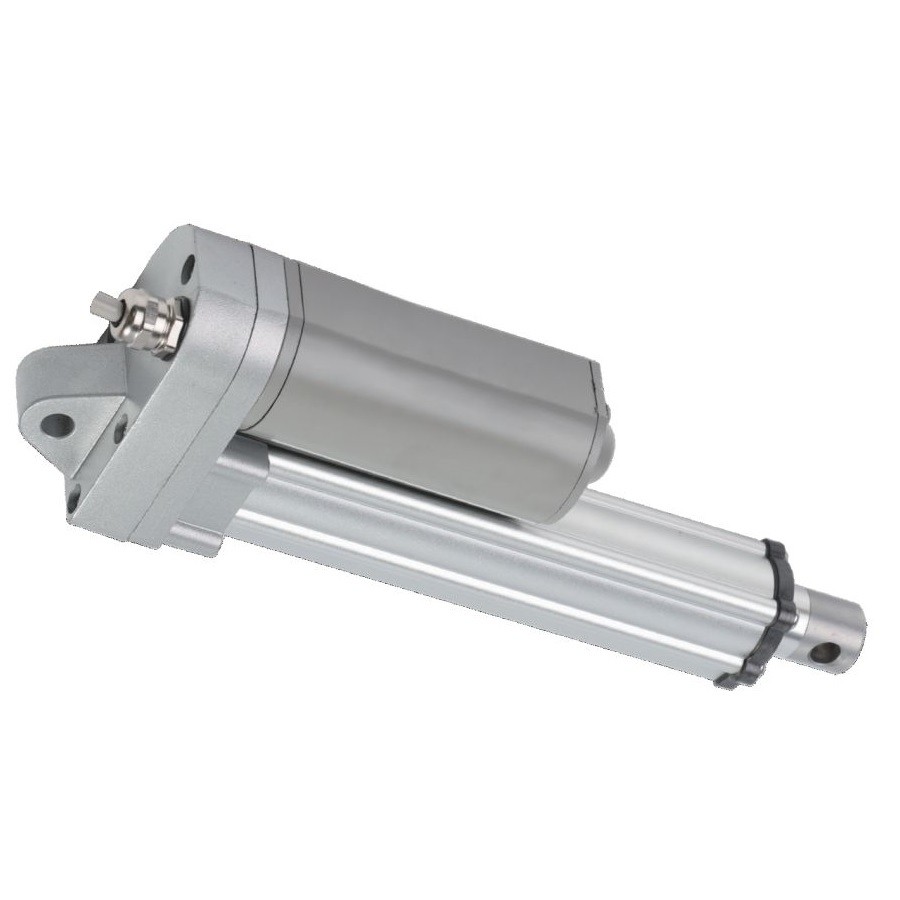

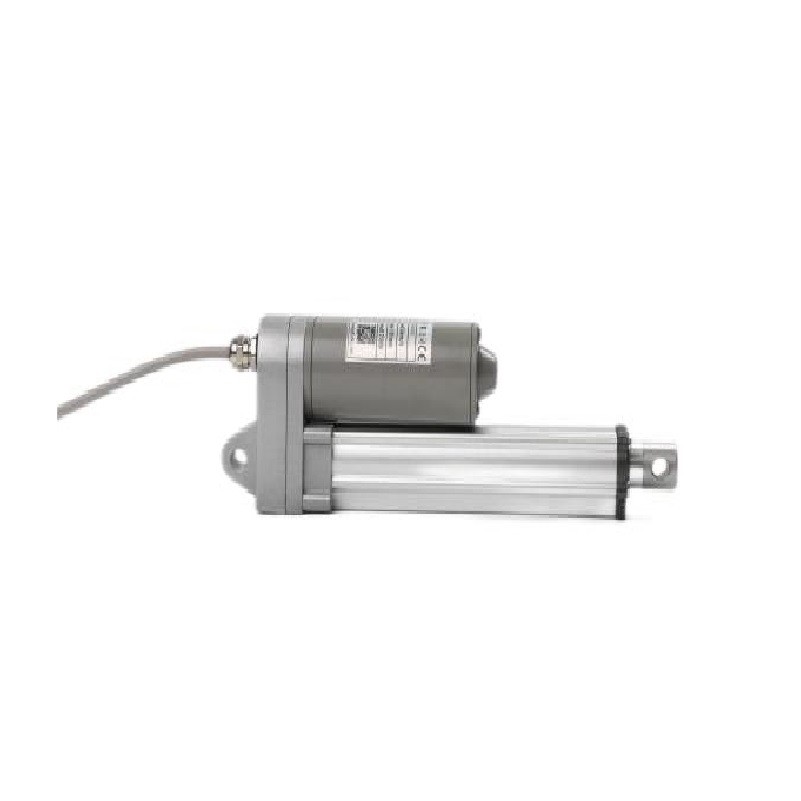

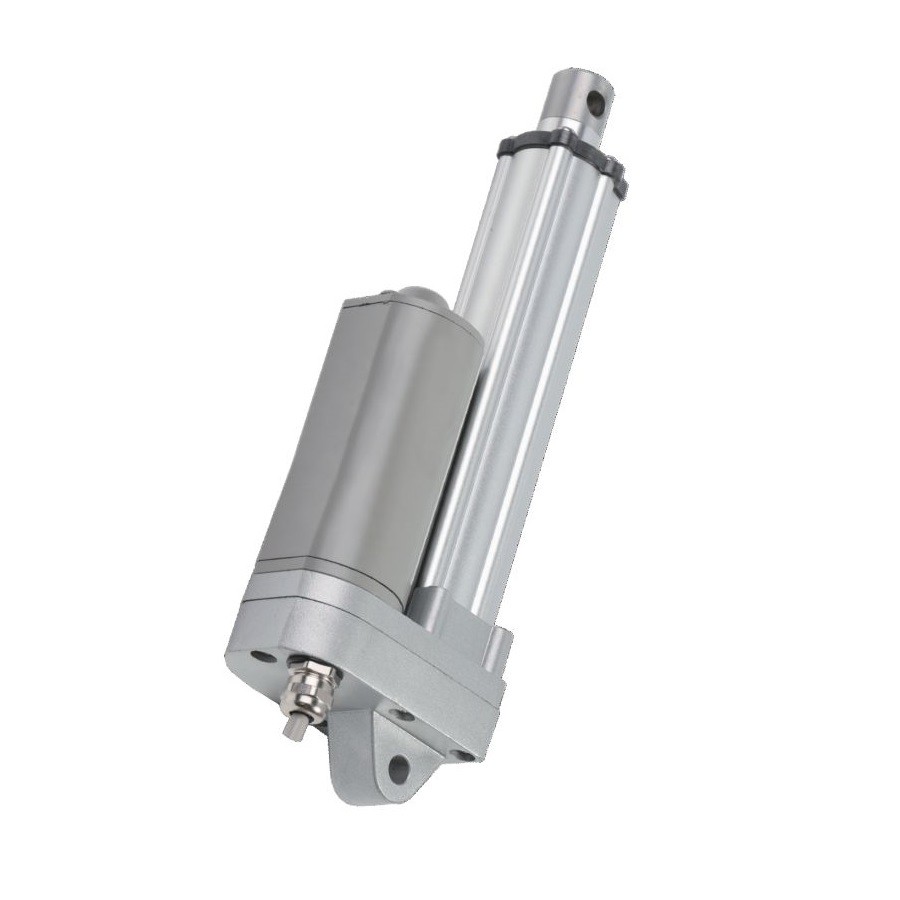

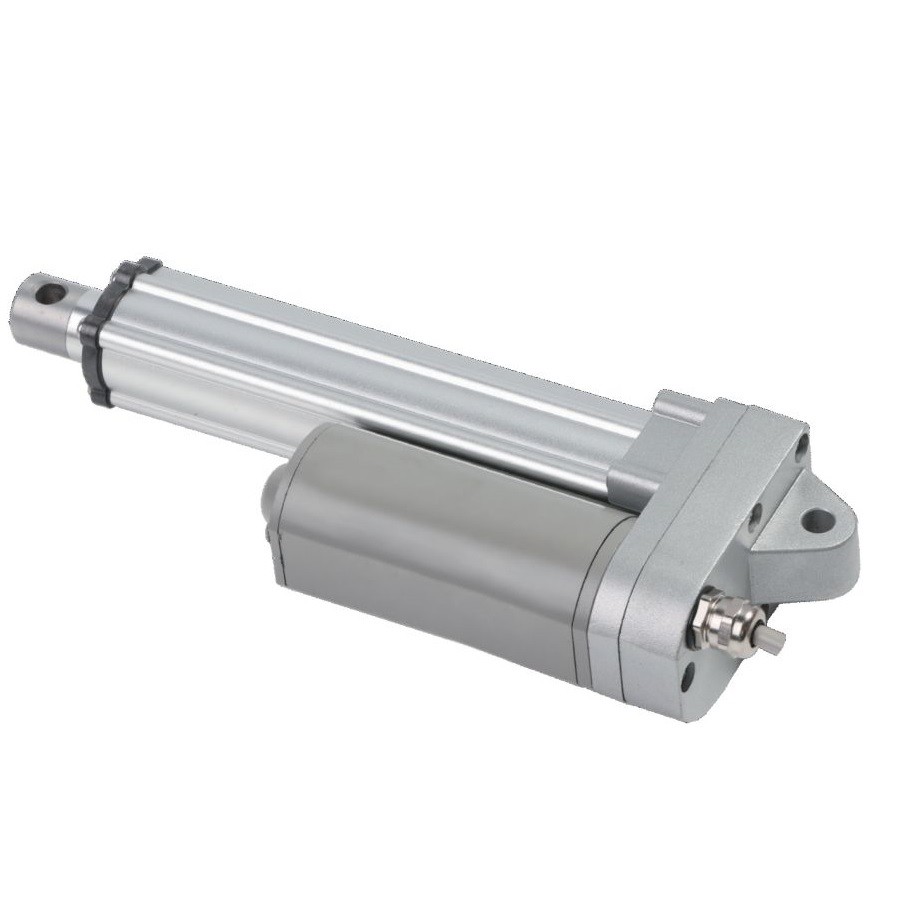

36V 2500N 1000mm Linear Actuator

Product Item：MC8-525

Stroke: 15-1000mm

Max speed: 5-66mm/s

Maximum Load: 2500N

Customization welcomed

Description

MAIN FEATURES

600mm stroke linear actuator is compact in size and has a strong pulling force (up to 2500N),
suitable for devices with limited installation space.
It is specially designed for household, medical industry, and other equipment.
The push rod is one of the push rods with stable quality, strong thrust, and long service life,
widely used in the furniture industry, such as massage chairs and functional sofas and agricultural machinery.

MAIN APPLICATIONS

Various mobile applications
Industrial automation
Solar tracker
Ventilation and tillage solutions

TECHNICAL DATA

MODEL	INPUT VOLTAGE	SPEED	MAXIMUM LOAD	STROKE	OPERATION TEMPERATURE	DUTY CYCLE	IP RATING	LIMIT SWITCHES
MC8-525	12V/24V/36V/48V	5-66mm/s	2500N	15-1000mm	-25℃~+60℃	25%	IP65	Built-in Limit Switch
