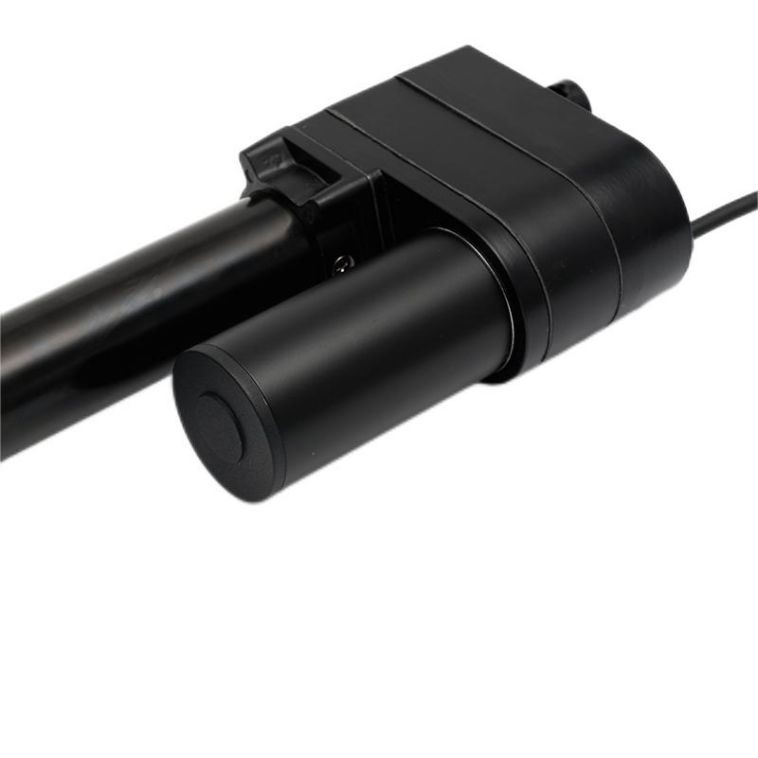

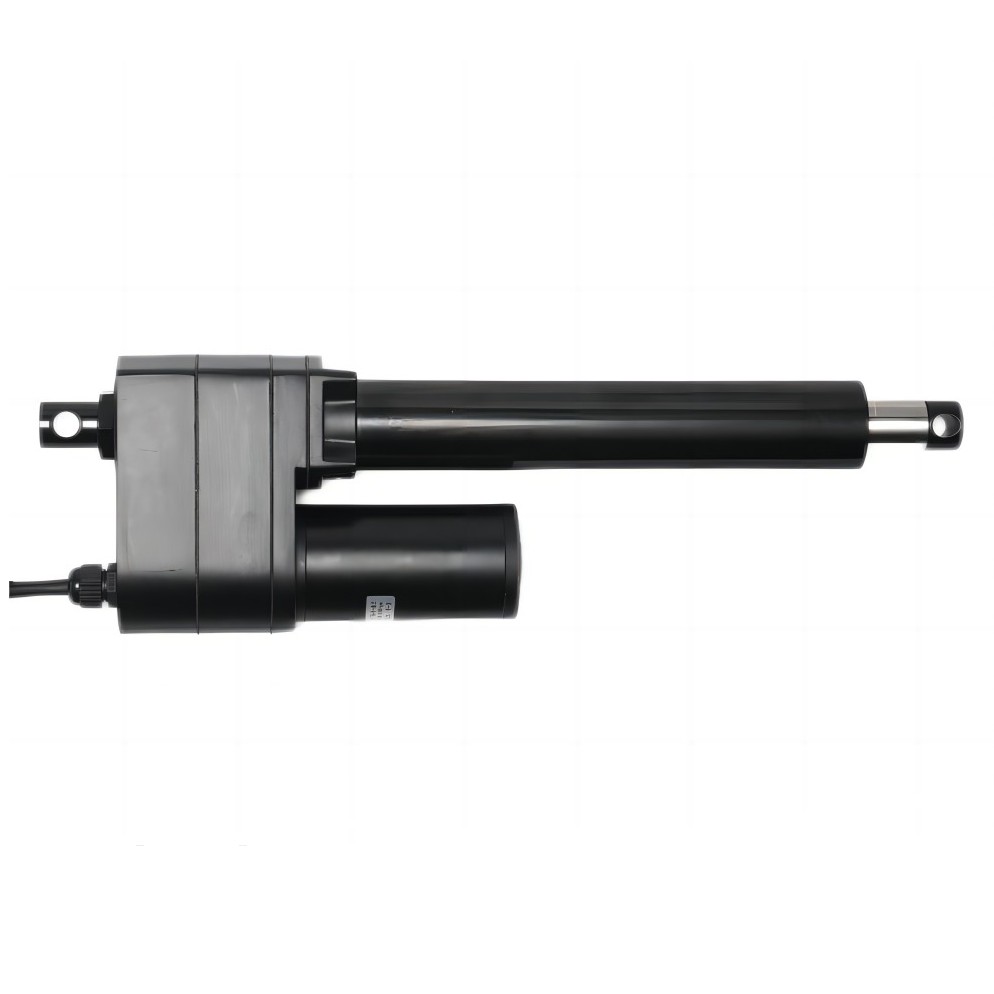

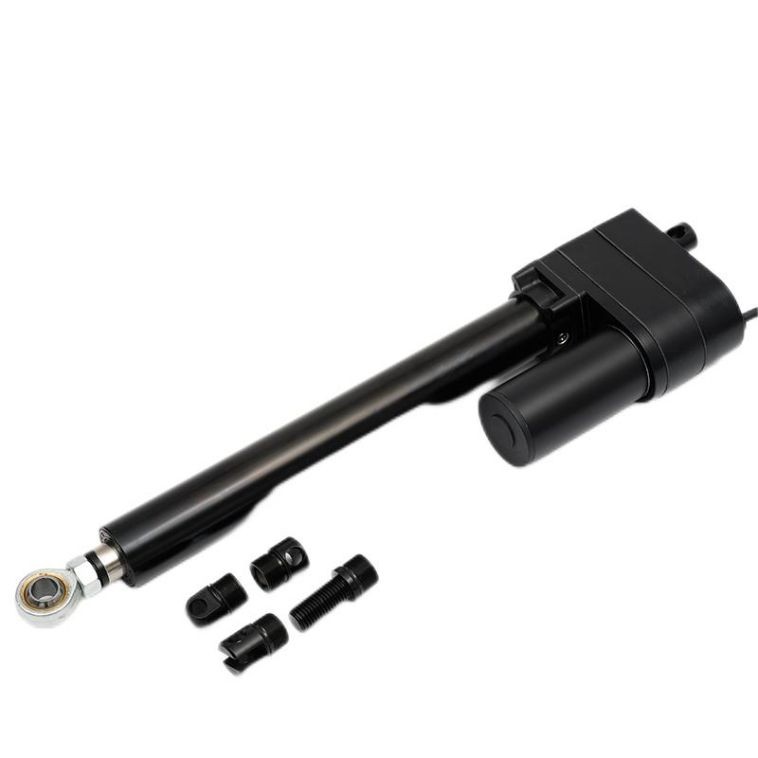

24V 10000N 1000mm Electronic Putter Fish Eye Linear Actuator

Description

MAIN FEATURES

The 10000N Force Linear Actuator For Industrial Use  is one of the most sturdy and powerful push rods in structure,
suitable for various indoor and outdoor applications.
It is a product with high protection level, long service life, and no need for maintenance.

Adapter, controller and power supply are also available as per customized requirements.

MAIN APPLICATIONS

Agricultural applications
Marine applications
Industrial automation
Solar tracker
Ventilation and tillage solutions

TECHNICAL DATA

MODEL	INPUT VOLTAGE	SPEED	MAXIMUM LOAD	STROKE	OPERATION TEMPERATURE	DUTY CYCLE	IP RATING	LIMIT SWITCHES
MC8-521	12V/24V/36V/48V	6.5-60mm/s	12000N	30-1000mm	-25℃~+60℃	25%	IP65	Built-in Limit Switch

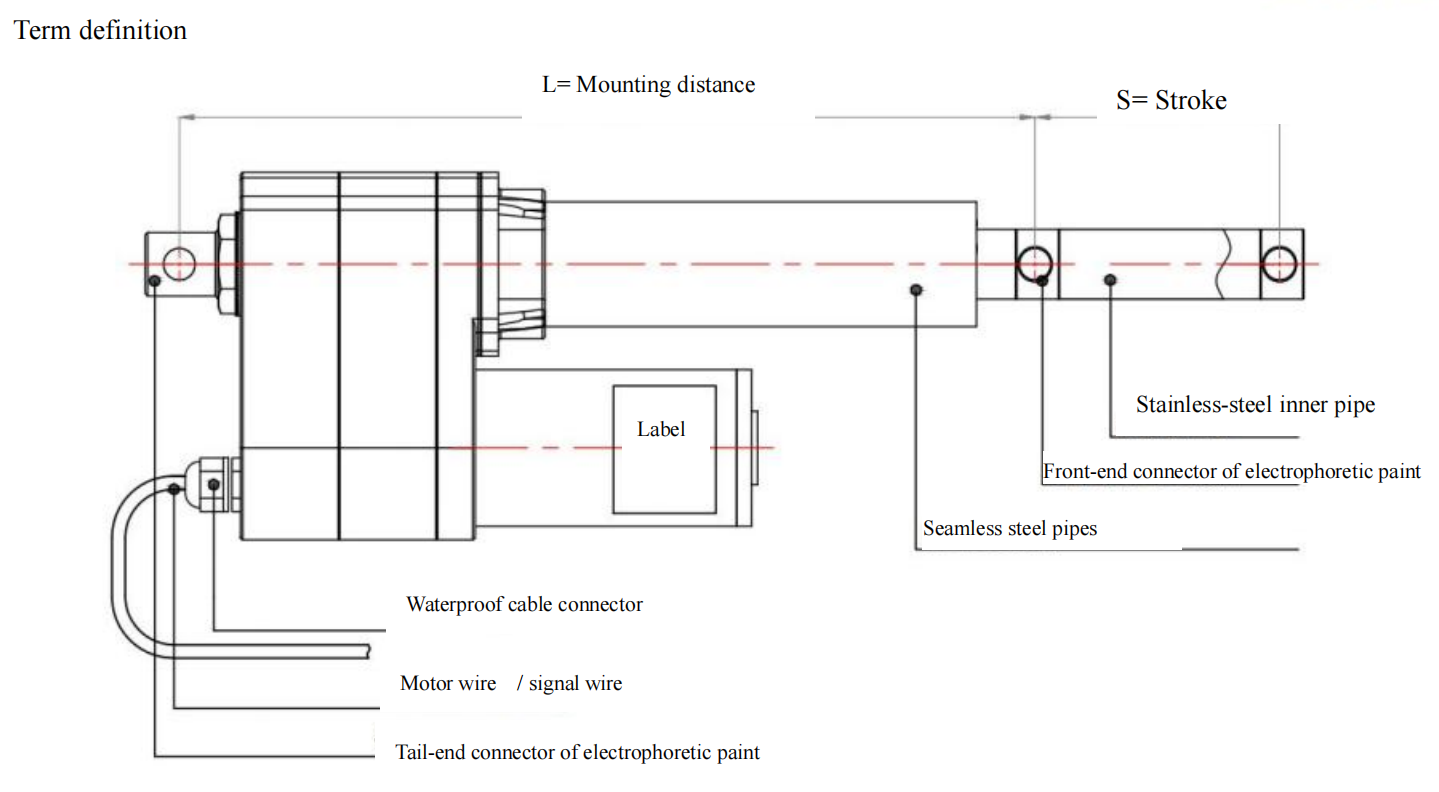

DIMENSION

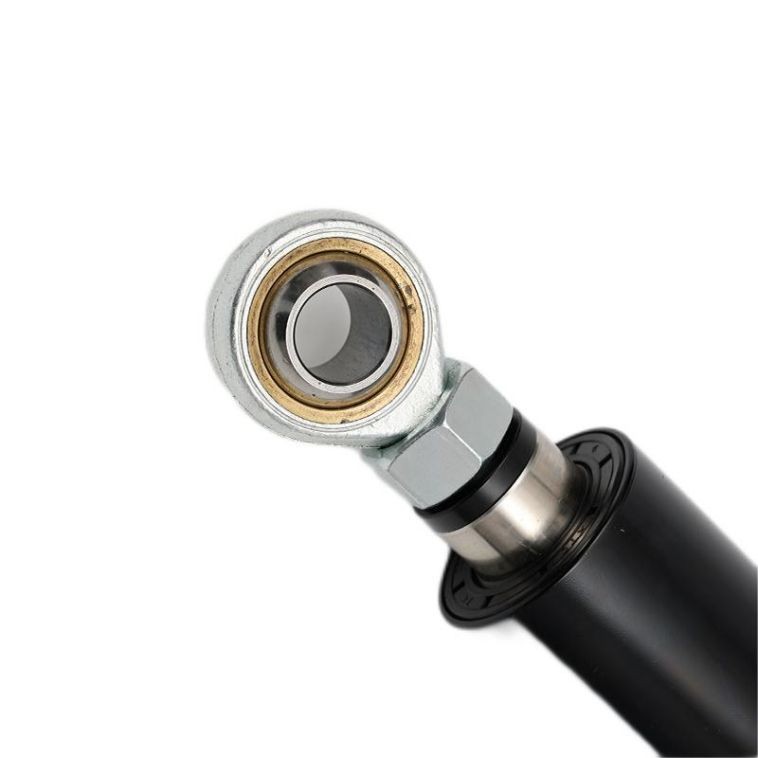

FRONT-END CONNECTOR

TAIL-END CONNECTOR
