Description
| MAIN FEATURES |
It can be used in narrow space，and widely used in engineering machinery,ventilation systems, food and beverage,automation equipment, etc..
Adapter, controller and power supply are also available as per customized requirements.
| MAIN APPLICATIONS |
Mobile agricultural applications
Furniture Applications
Medical applications
Robot application
| TECHNICAL DATA |
|
MODEL |
INPUT VOLTAGE | SPEED | MAXIMUM LOAD | STROKE | OPERATION TEMPERATURE | DUTY CYCLE | IP RATING | LIMIT SWITCHES |
|
MC8-522 |
12V/24V/36V/48V |
80mm/s | 1200N | 15-1000mm | -25℃~+60℃ | 25% | IP65 | Built-in Limit Switch |
Voltage, speed, stroke, load and mounting distance can be customized.

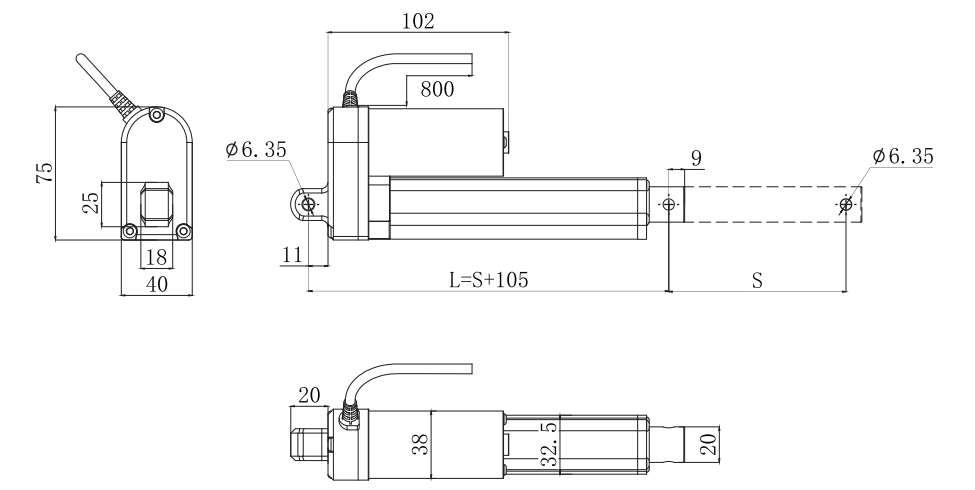

| DIMENSION |
| FRONT-END CONNECTOR |
|
TAIL-END CONNECTOR |
