Description
| MAIN FEACTURES |
12V/24V/36V/48V 12000N 1000mm stroke actuator is widely used in indoor and outdoor devices such as industrial automation, medical, furniture, solar tracker, work environment, ventilation and tillage solutions and various mobile applications .
| TECHNICAL DATA |
|
MODEL |
INPUT VOLTAGE | SPEED | MAXIMUM LOAD | STROKE | OPERATION TEMPERATURE | DUTY CYCLE | IP RATING | LIMIT SWITCHES |
|
MC8-520 |
12V/24V/36V/48V |
6.5-60mm/s | 12000N | 30-1000mm | -25℃~+60℃ | 25% | IP65 | Built-in Limit Switch |

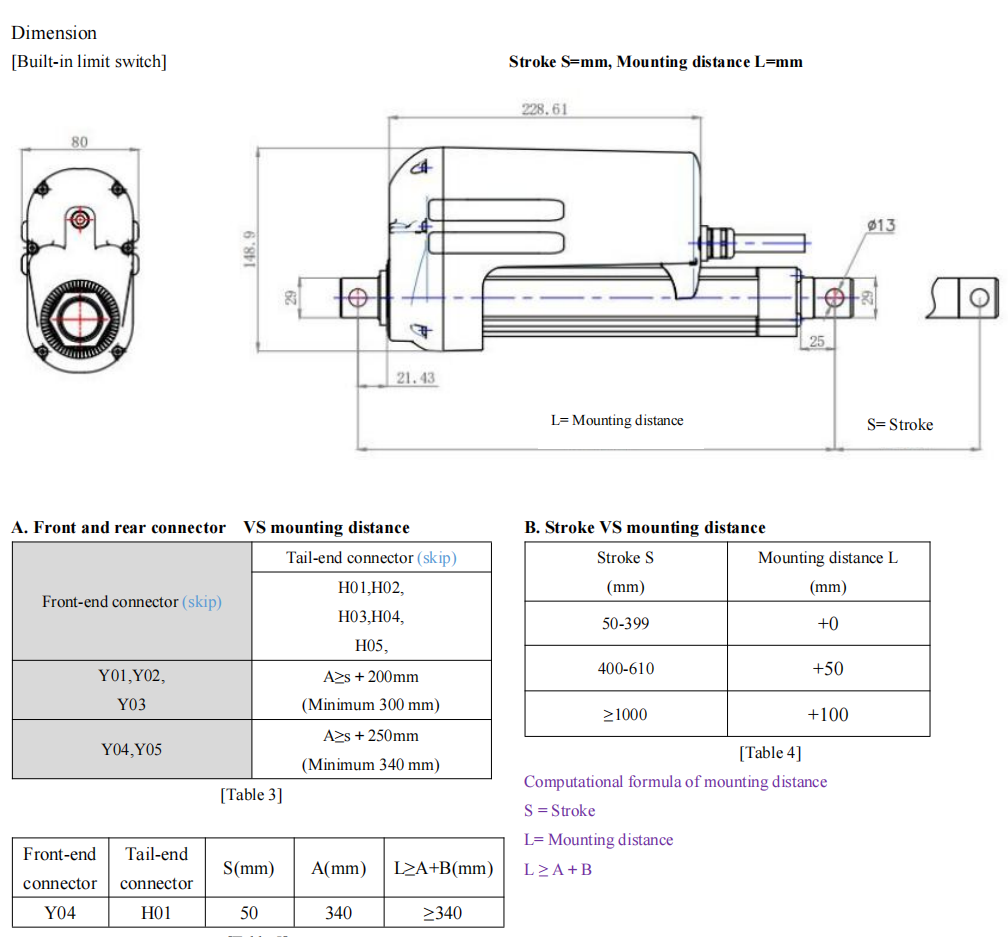

| DIMENSION |

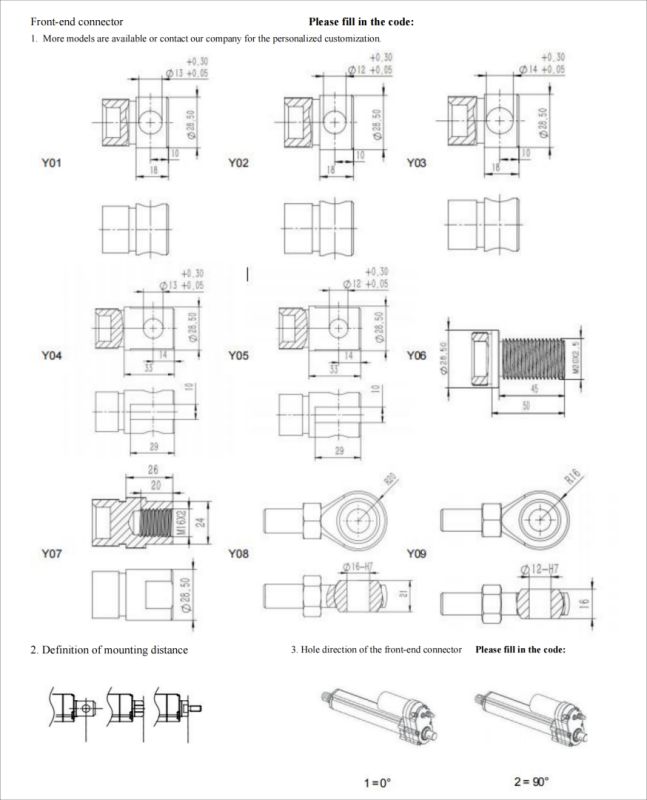

| FRONT-END CONNECTOR |

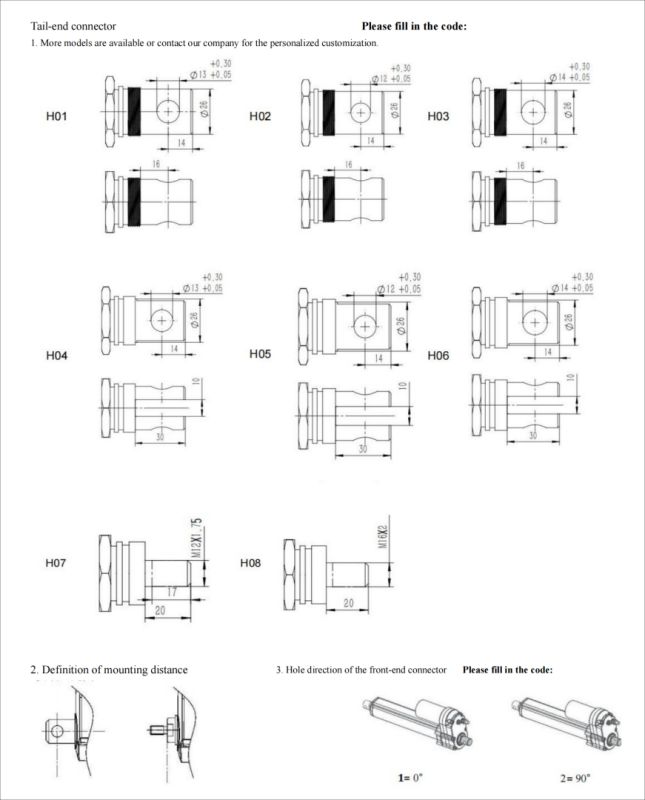

| TAIL-END CONNECTOR |
