Description

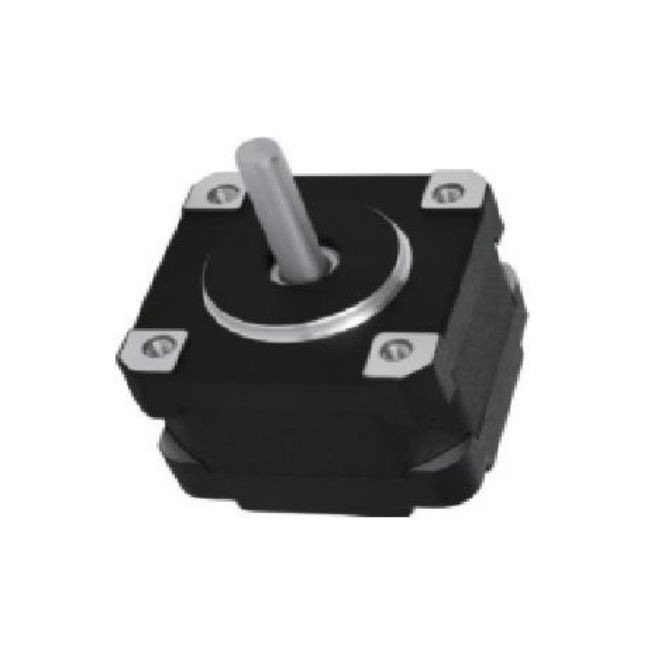

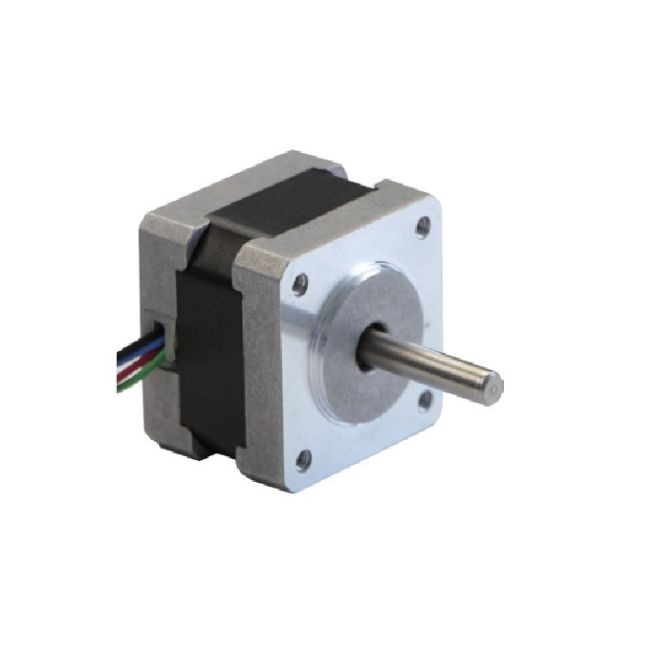

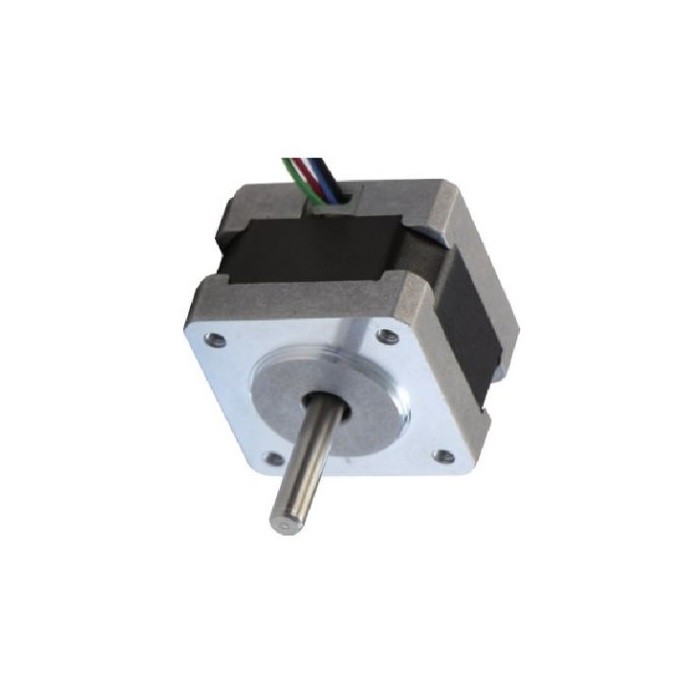

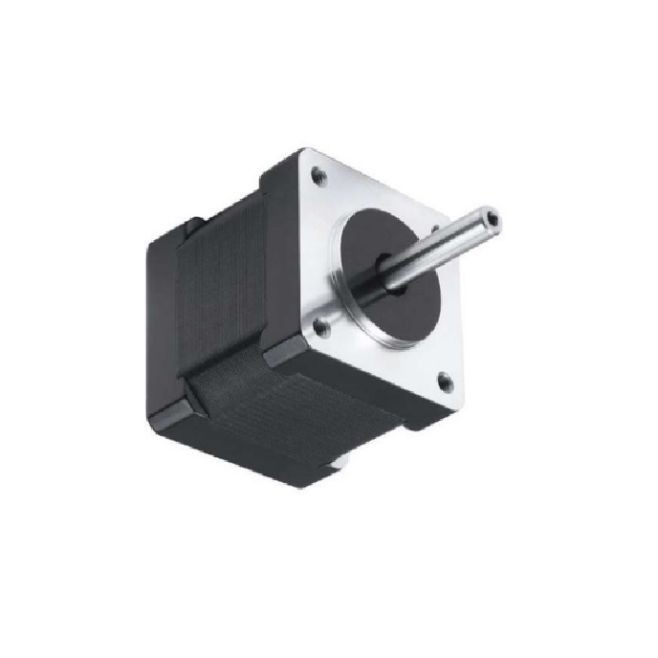

4V-13.5V DC NEMA14 0.9 degree hybrid stepper motor pan tilt
The hybrid stepper motor combines the advantages of permanent magnet and reactive type, and is an electromechanical component stepper motor that can convert electric pulse signals into angular or linear displacement. It is divided into two-phase, three-phase, and five phases: the two-phase stepper angle is generally 1.8 °. As the number of phases increases, the stepper angle decreases and the accuracy improves.
This type of stepper motor is the most widely used in AGV, home appliance, barrier, auto door,LIDAR,robotics,logistics,green energy, medical, textile, office automation, financial equipment and agriculture etc.
Length, shaft, phase, step angle,current, torque and so on can be customized.

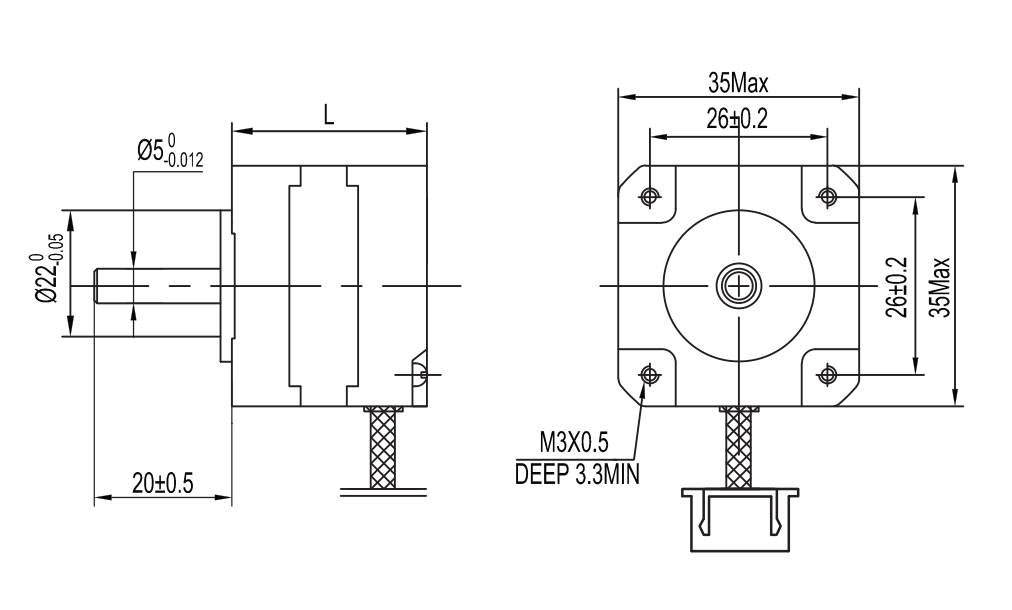

| DIMENSION |

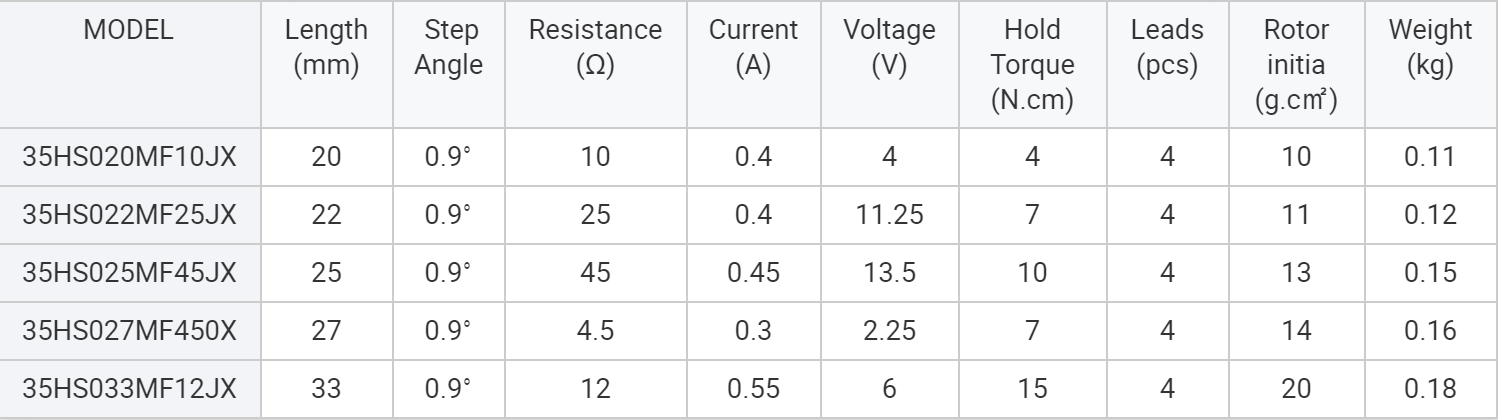

| TECHNICAL DATA |
Motor voltage, resistance, speed ratio, holding torque, can be adiusted according to customer requirements.
